Specification

- Black Rubber Ring, hardness 82 ± 4 Sh. A.

- Steel Centre

- Plain bearings.

- Temperature range from -20°C up to +60°C

- Maximum Speed 4 Km/h.

- Housing our Series standard M80A.

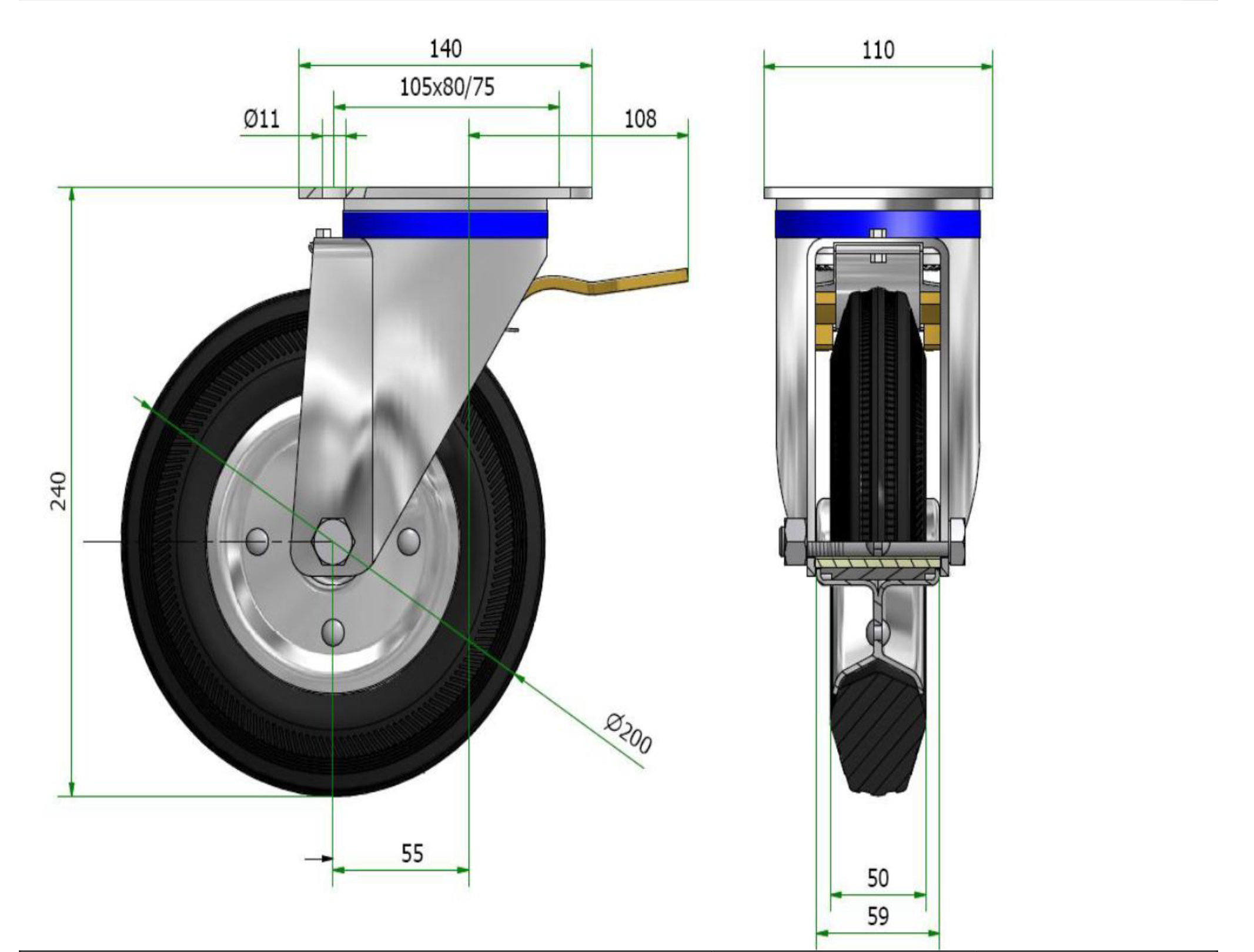

Dimension

DIMENSIONAL FEATURES	UNIT	DIMENSION
WHEEL DIAMETER	mm	200
HUB LENGTH	mm	50
OVERALL HEIGHT	mm	240
PLATE DIMENSION	mm	140x110
HOLES	mm	11
BOLT HOLE SPACING	mm	105x80/75
OFFSET	mm	55
BRAKE DIMENSION	mm	108
WEIGHT	Kg	3,73
LOAD CAPACITY	Kg	230

Type of Housing Available

• Top plate rectangular swivel
• With front brake
• With rear brake
• With directional brake*
• Fixed plate

• Top plate circular swivel with hole
• With reduction insert
• With front brake

• Top plate circular swivel with Cylinder stem
• With front brake

• Top plate circular swivel with Threaded stem
• With front brake
