Specification

- Solid black rubber, hardness 82 ± 4 Sh. A

- Molded plastic wheel center.

- Plain bore bearings.

- Working temperature, from -20°C to +60°C

- Speed working: 4 Km/h.

- Housing series M80A

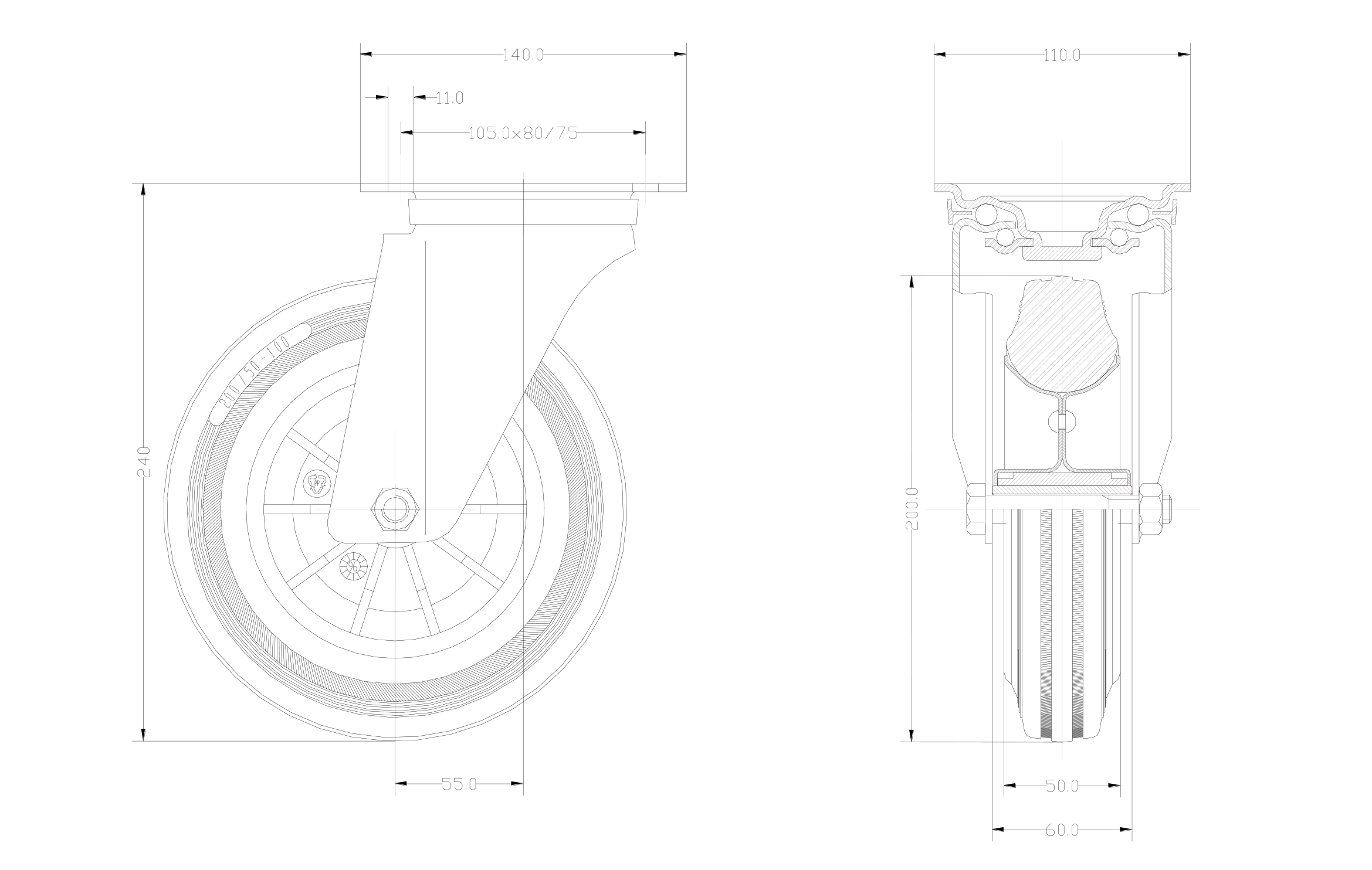

Dimension

DIMENSIONAL FEATURES	UNIT	DIMENSION
WHEEL DIAMETER	mm	200
HUB LENGTH	mm	50
TOTAL HEIGHT	mm	240
PLATE DIMENSION	mm	140x110
Screw hole plate dimension	mm	11
Hole distances	mm	105x80/75
OFFSET	mm	55
WEIGHT	Kg	2,70
LOAD CAPACITY	Kg	205

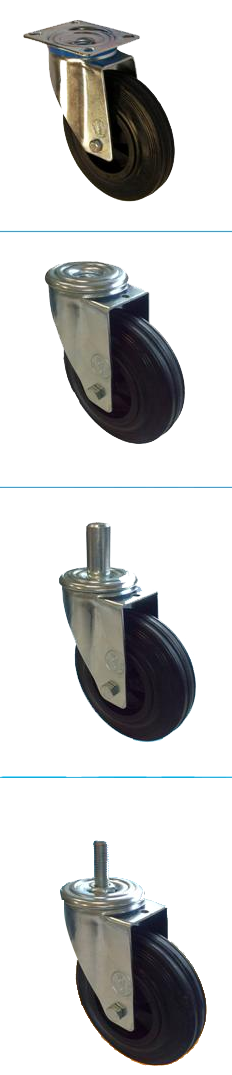

Type of Housing Available

• Top plate rectangular swivel
• With front brake
• With rear brake
• With directional brake*
• Fixed plate

• Top plate circular swivel with hole
• With reduction insert
• With front brake

• Top plate circular swivel with Cylinder stem
• With front brake

• Top plate circular swivel with Threaded stem
• With front brake
