SurfRake

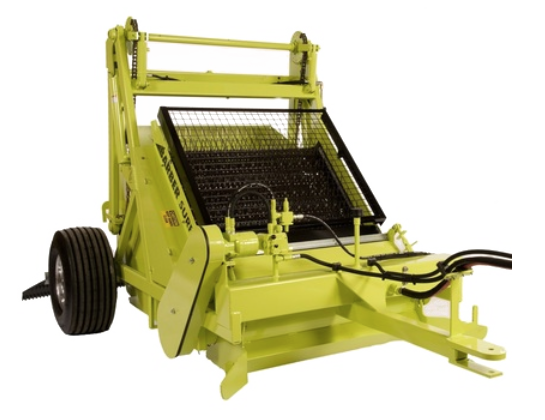

SurfRake - 400 HD

Specifications
DIMENSIONS:	H: 7'3" L: 11'9" W: 7'6"
WEIGHT:	Approximately 2700 lbs
CLEANING WIDTH:	6 feet
CLEANING DEPTH:	Adjustable to 6"
OPERATING SPEED:	1.0 to 15.0 miles per hour
DEBRIS REMOVED:	Broken glass, plastic, syringes, cigarette butts, pop-tops, straws, cans, tar balls, stones 3/8" to 6" in diameter, sea grass, seaweed, fish, small pieces of wood.
PERFORMANCE:	Cleans up to 7 acres per hour
HOPPER:	2 cubic yards (3,500 lbs cap)
DUMP HEIGHT:	9 feet
TIRES:	31 x 13.5 x 15 high flotation design
CONVEYOR:	Of bar flight type, covered with continuous 4' wide belt, with stainless steel spring tines mounted on it.
HYDRAULIC DRIVE:	Completely sealed and protected by the full flow filter. Large capacity spline mounted pump, hydraulic motor, flow control, and built-in overflow protection.
HYDRAULIC FLOW:	12 gallons per minute
HYDRAULIC CAP:	11 gallons
CYLINDERS:	Lift 3" x18" single acting Trip 2' x 5' single acting
PAINT:	Dupont IMRON Polyurethane enamel
TRACTOR:	35 PTO horsepower 4-wheel drive agricultural type tractor with 28" rear wheels
OTHER TRACTOR REQUIREMENTS:	540 RPM rear PTO, 3-point hitch and depending on model and options, up to two remote hydraulic valves with raise, hold and float positions. Larger or smaller tractors may be used depending on beach conditions.
