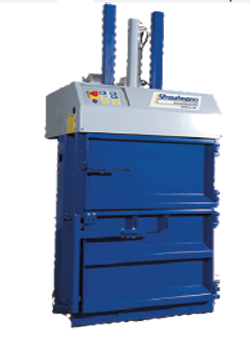

Bale Press 800

Specifications
Order number:	V1580004
Power supply:	1,85 x 2,8 x 6,5 m
Machinery weight	400 V 50 Hz 16 A Category C
Electricity supply	400 V, 3 ph
Electrical Power:	4 kW
Protection class:	IP54
Pressing force:	180 kN
Press stroke:	890 mm
Weight of the machine:	Ca. 1400 kg
Transport dimensions (lxwxh):	1904 x 1172 x 2839 mm (lowered) 1904 x 1172 x 1950 mm
Filling opening (wxh):	ca. 1190 x 555 mm
Cycle Time:	ca. 46 sec.
Bale weight *:	Max. 250 kg
Bale size in the chamber (lxwxh)*:	1200 x 800 x 800 mm
Bale tying:	strapping with four twines
Comment:	mechanical ejector two-hand operation

Solid baling presses compact loose materials such as cardboard packaging, paper and film into high-density bales.Mobile use, low space requirement, very easy operation and a wide application range are the principal advantages of the BalePress 700 and BalePress 800. Even for a small quantity of material, using these baling presses pays off.

The pressing plate guiding system TopPlus® ensures a longer service life of the baling press.

The BalePress is also available as two-hand-operation
