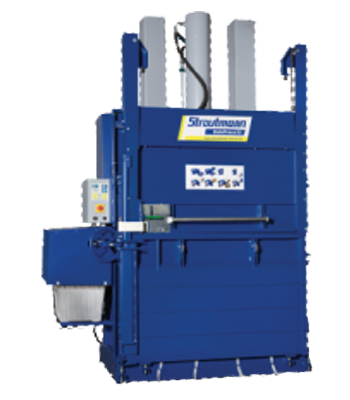

Bale Press 53

Order number: V1600002
Power supply: 1,85 x 2,8 x 6,5 m
Machinery weight 400 V 50 Hz
16 A Category C
Electrical Power: 4 kW
Protection class: IP54
Pressing force: 530 kN
Press stroke: 890 mm
Weight of the machine: 2130 kg
Transport dimensions (lxwxh): 1978 x 1183 x 3150 mm (lowered) 1978 x 1183 x 2249 mm
Filling opening (wxh): 1192 x 575 mm
Cycle Time: ca. 32 sec.
Bale weight *: Max. 400 kg
Bale size in the chamber (lxwxh)*: 1200 x 800 x 1100 mm
Bale tying: strapping with four twines
Comment: mechanical ejector

The baling press BalePress 53 with a pressing force of 53 t is one of the power packs of baling presses..

The bales with a bale weight of about 400 kg can be sold directly to the paper mills

The baler BalePress 53 is equipped with a sliding door, so space is saved when the door is opened.

For a faster filling of the press the sliding door of the BalePress 53 can be equipped with an automatic opening

The massive press-shield guiding system TopPlus® prolongs the life-duration of the bailing press and reduces wear

The holding-down devices "CircleSystem®" reduces re-expansion of the compacted material, so highest bale weights are achieved. With the automatic bale ejector the bales can be discharged easily and without high personnel expenses

Advantages at a glance

  • user-friendly
  • saving of logistics and labour costs
  • little space required for the machine
  • improvement of internal logistics
  • high proceeds for bales
