|Power supply:||1,85 x 2,8 x 6,5 m|
|Machinery weight||400 V 50 Hz
16 A Category C
|Electricity supply||400 V, 3 ph|
|Electrical Power:||4 kW|
|Pressing force:||180 kN|
|Press stroke:||890 mm|
|Weight of the machine:||Ca. 1400 kg|
|Transport dimensions (lxwxh):||1904 x 1172 x 2839 mm (lowered) 1904 x 1172 x 1950 mm|
|Filling opening (wxh):||ca. 1190 x 555 mm|
|Cycle Time:||ca. 46 sec.|
|Bale weight *:||Max. 250 kg|
|Bale size in the chamber (lxwxh)*:||1200 x 800 x 800 mm|
|Bale tying:||strapping with four twines|
|Comment:||mechanical ejector two-hand operation|
This baling press not only creates order and cleanliness in your company, also the in house logistics is improved and revenues for bales are achieved.

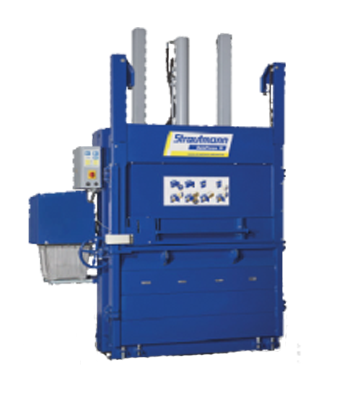

The Bale Press 18 compacts bulky cardboard packaging, film and paper into bales and is used in different branches
The huge filling opening, the economic filling height and the easy operation makes the baler your productive partner.
The baler is equipped with a sliding door, so space is saved when the door is opened.The massive press-shield guiding system TopPlus The holding-down devices inside the press chamber avoid re-expansion of the compacted material - so maximum volume reduction is achieved
The result high bale density,low costs and high revenues
With the automatic bale ejector the bales can be discharged easily.
