Baling FP 200/FP 300 - Equipment Environmental Solutions

FP 200/FP 300

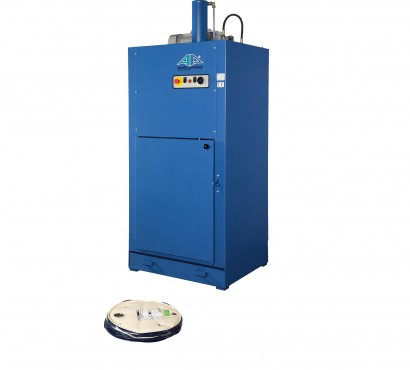

Barrel Press FP 200 / FP 300

Reduction to 10% of the volume

Barrel press designed to reduce the volume of drums, cans, barrels and containers up to 200 liter. The press ram is fitted with spikes, allowing air or gas to escape during the compaction cycle. The presses are simple to operate and are equipped with an automatic ram return.

short pressing cycle

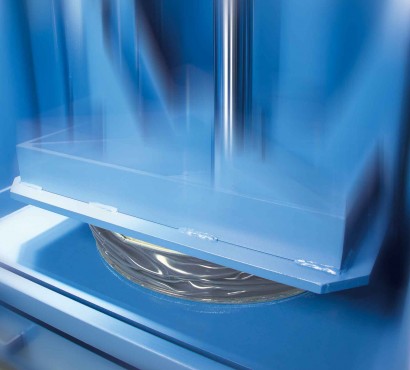

press plate with spikes
liquid residues are collected within a sump

Details

easy and quick operation by automatic return stroke of the cylinder
short pressing cycle
maximum safety due to closed construction
press plate is fitted with spikes
any liquid residues are collected within a sump
also available in ex-proof version (meeting ATEX requirements)
high durability and reliability based on our quality standards

Specifications
Model	FP 200	FP 300
Compression force	200 kn	270 kn
Motor	4 kW	5,5 \| 5,7 kW
Compression Time	50 Sec	60 \| 50 Sec
max.diameter of cans and barrels	700x950 mm	700x950 mm
Capacity	60 pcs/h	50\| 60 pcs/h
dimensions lxwxh	1000x890x2450 mm	1000x940x2470 mm
weight	1695 kg	2180 kg
