APV 100/160/300/500 Bale

Sorting and pressing all in one

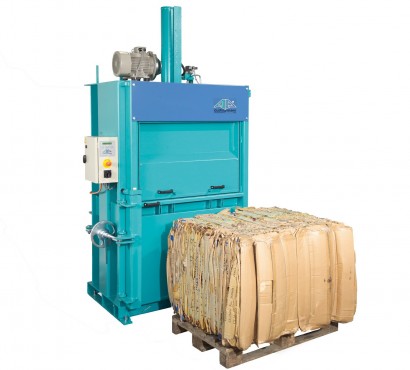

Strong and highly efficient vertical baling press for high bale weights in minimum space. The palette-sized bales reach a weight of up to 500kg and can be commercialised directly.

A digital display, an automatic bale ejection and a sliding which opens automatically, guarantee a maximum ease of operation.

  • low space requirement
  • maximum ease of operation
  • dense and marketable bales
  • binding with wire or tape

For compression of cardboard, paper, textiles and various plastics (film).


  • easy and quick operation by automatic return stroke of the cylinder
  • short pressing cycle
  • maximum safety due to closed construction
  • press plate is fitted with spikes
  • any liquid residues are collected within a sump
  • also available in ex-proof version (meeting ATEX requirements)
  • high durability and reliability based on our quality standards
Model APV 100 APV 160 APV 300 APV 500
Compression force 100 kn 160 kn 300 kn 500 kn
Motor 2,2 kW 4 kW 5,5 kW 7,5 kW
Compression Time 24 Sec 24 Sec 35 Sec 40 Sec
Box Size wxhxl 1000x600x1100 mm 1100x700x1250 mm 1200x800x1550 mm 1200x800x1550 mm
Loading aperture 1000x500 mm 1100x600 mm 1090x570 mm 1090x570 mm
Loading Height 750 mm 850 mm 1100 mm 1100 mm
Bale Size 1000x600x600 mm 1100x700x800 mm 1200x800x1000 mm 1200x800x1000 mm
Bale Weight 80-160 kg 100-220 kg 300-400 kg 300-500 kg
Binding 3v 4v 4v 4v
dimensions lxwxh 1520x830x1770 mm 1580x930x1950 mm 1620x1250x2920 mm 1620x1250x2950 mm
weight 890 kg 1140 kg 1695 kg 2180 kg
