APK B/C/E/ES/G/H/Textile Bale

Highly versatile – our models for experts

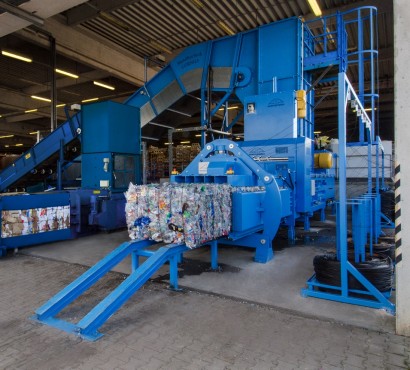

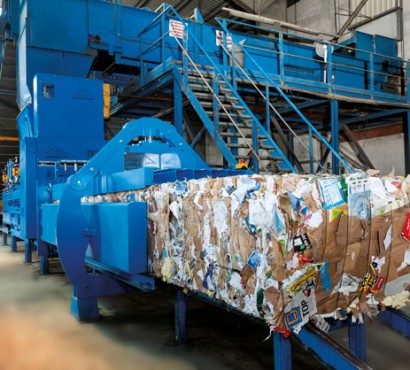

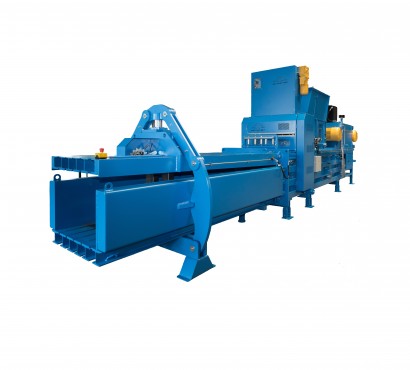

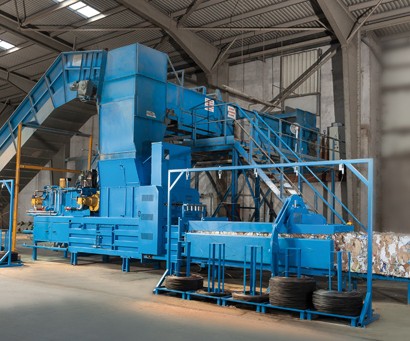

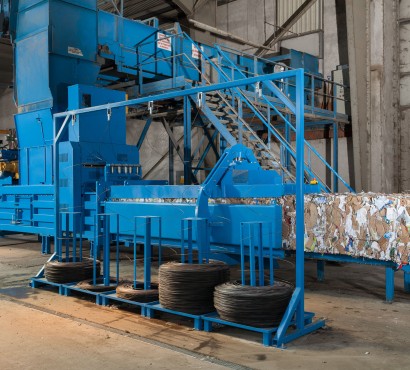

with this newly designed models even experienced users of baling presses like paper industry or recycling plants are convinced by the high quality and reliability of these machines. highly compacted and stackable bales for an optimal truck loading are the best proof for the excellent efficiency of these channel balers. this continuous, reliable machine in combination with an optimal feeding attachment together provide a modern and future-oriented waste handling and is therefore perfectly equipped for every logistic requirement. optimal designed hydraulic blocks, an ideal cutting system and the patented automatic tying unit guarantee maximum pressing speed together with low energy consumption.

  • bale size: 1100×750 mm
  • bale weight: 400-700 kg
  • press performance: 340-680 m³/h
  • compacting pressure: 700-1050 kN


Fields of application

channel baling presses of the range APK-ES are suitable for fragments from cardboard production, packaging material of consumer goods, paper and plastic bags from food or animal feedstuff production, PET-bottles, plastics film, blown containers, etc. and are successfully used in the packaging production, central storage facilities and waste disposal companies.

  • the big roller guide of the press plate allows to take high pressure
  • bale weight: 400-700 kg
  • changeable bottom parts are made of wear resistant HARDOX
  • energy efficiency and high throughput due to ideal designed cutting knives

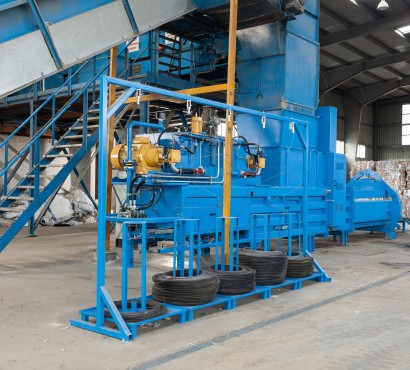

  • special free-press device and the patented fully automatic tying system DRILLFIX guarantees a continuous and failure-free operation
  • hydraulic unit is equipped with a self regulating low noise axial pump including automatic switch off
  • inspection doors on both sides guarantee a quick and safe maintenance
  • key transfer system for maximum operator safety
  • different hoppers for variable areas of application – even with control sensor for overfilling
  • automatic pressure-controlled channel adjustment on three sides guarantee high bale weights
  • duo-switch with 2 or optionally 6 pressure levels for optimal operating of different material and frequent material changes
  • big range of additional equipment
  • high durability and reliability based on our quality standards
Model APK-ES 70-1700 APK-ES 85-1700 APK-ES 105-2000
compression force 700 kn 850 kn 1050 kn
motor 55 | 2x45 kW 55 | 2x45 | 45+55 kW 2x55 | 3x45 | 3x55 kW
Specific Pressure Force 85 N/cm2 103 N/cm2 127 N/cm2
loading aperture 1700x1020 mm 1700x1020 mm 2000x1020 mm
loading volume 1,7 m3 1,7 m3 1,9 m3
Bale size 1100x750 mm 1100x750 mm 1100x750 mm
bale weight 400-600* kg 500-600* kg 500-700* kg
binding 5v 5v 5v
2h optional 2h optional 2h optional
dimensions lxwxh 10500x1900x4000 11500x2400x4000 12300x1900x4000
weight 21000 23000 26000
