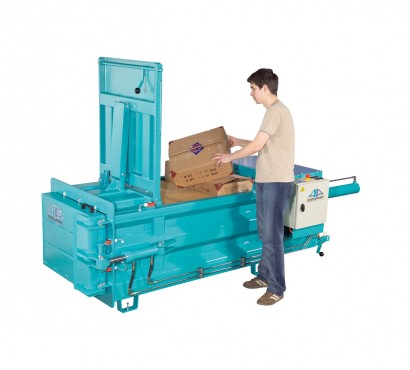

Horizontal baling press KNL 100/120/140/160

1000 times approved

K is the most reasonable solution and pays for itself within a short time. It easily compresses cardboard, paper, wooden fruit baskets, film, cans, PET bottles, tins and cans up to 60 liter to a minimum. It is the ideal baling press for the area of catering, gastronomy and small businesses.

  • clean solution
  • minimum space
  • universal application
  • simple operation

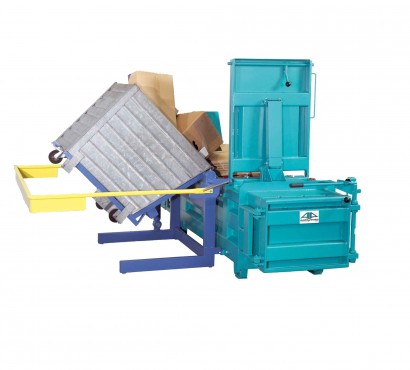

Sorting and pressing all in one – the baler can be extended with additional chambers at any time.

Details

  • when space is limited
  • high power with minimum space
  • universal application (often used in hotels, restaurants, shops, car repair shops, retailers, offices, gas stations)
  • simple binding system with plastic strapping tape
  • clean solution (available with bag attachment for residual waste or small parts)
  • high durability and reliability based on our quality standards
Specifications
Model KNL 100 KNL 120 KNL 140 KNL 160
Compression force 100 kn 120 kn 140 kn 160 kn
Motor 4 kW 4 kW 5.5 kW 7.5 kW
Compression Time 25 Sec 35 Sec 40 Sec 40 Sec
box size wxhxl 700x550x1700 mm 800x600x1500 mm 800x600x2000 mm 800x750x2200 mm
Loading Aperture 1000x700 mm 1200x800 mm 1200x800 mm 1400x800 mm
Loading Height 750 mm 820 mm 820 mm 960 mm
Bale Size 700x550x1200 mm 800x600x800 mm 800x750x1200 mm 800x750x1200 mm
Bale Weight 80-140 kg 120-150 kg 150-200 kg 200-250 kg
Binding 3v 3v 3v 3v
Dimensions lxwxh 3840x1075x1000 (1870) mm 3570x1170x1040 (1900) mm 4700x1170x1040 (2105) mm 4910x1320x1155 (1870) mm
Weight 1050 kg 1240 kg 1370 kg 1660 kg
