Bale AP 25/35/40

High pressure – maximum safety

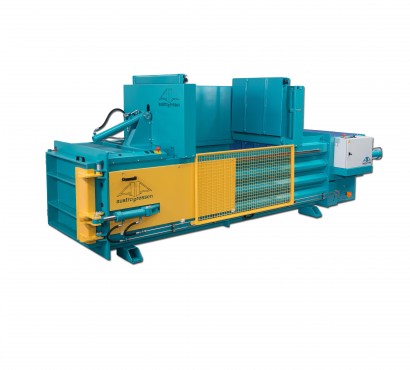

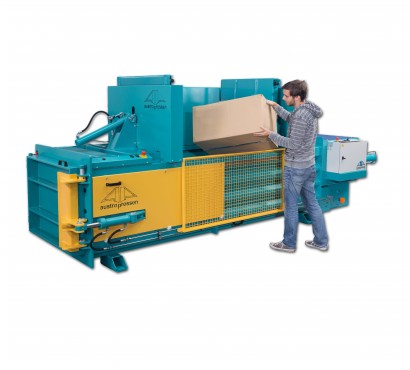

This horizontal baling press is equipped with a hydraulically secured ejection door and a large loading aperture with two filling flaps. Doors open and close at the simple touch of a button. protective grids ensure maximum safety.

  • High level of automation
  • Remarkable throughput performance
  • High bale weights
  • Binding with wire or plastic tape

AP 25 is a professional baler for universal application and compresses also difficult material like PET bottles, textile, hollow parts, plastic containers, tin cans and metal containers up to 200 liter. In combination with a tipping device the ideal solution for industry and warehouses.

Details

  • Big loading aperture due to two hydraulic filling doors
  • Maximum ease of operation at the touch of a button
  • Hydraulically secured ejection door ensures maximum safety and high bale weights
  • Loading apertures and binding slots are protected with safety cages and grids
  • High level of automation and remarkable throughput performance
  • Bale length is adjustable due to horizontal binding with wire or plastic strapping tape
  • in combination with a tipping device the ideal solution for industry and warehouses.
  • Bale is ejected automatically.
  • High durability and reliability based on our quality standards.
Specifications
Model AP 25 AP 35 AP 40
compression force 250 kn 350 kn 400 kn
motor 7,5 kw 15 kw 22 kw
compression time 40 sec 50 sec 60 sec
box size wxhxl 1000x750x2500 mm 800x1000x3150 mm 800x1000x3150 mm
loading aperture 1500x940 mm 1500x740 mm 1500x740 mm
loading height 1000 mm 1250 mm 1250 mm
Bale size 1000x750x1200 mm 800x1000x1400 mm 800x1000x1400 mm
bale weight 200-300 kg 300-400 kg 400-600 kg
binding 3h 5h 5h
dimensions lxwxh 5800x1700x1850 mm 7200x1560x2100 mm 7200x1560x2100 mm
weight 3150 KG 4950 KG 5400 KG
